More Power on Your PCBThe trend toward downsized components presents new challenges for power electronics. The greater power density caused by combining the signal and output layer on the PCB also impacts the connection technology. PCB terminal blocks and pluggable PCB connectors must be compact, transmit currents reliably and also work reliably with the PCB under demanding conditions.
PCB terminal blocks and pluggable PCB connectors with levers need to meet a huge variety of demands – including robustness under challenging conditions and ever-shrinking dimensional specifications for machines, systems and devices. WAGO offers a wide range of especially compact PCB terminal blocks and pluggable PCB connectors with levers, as well as products for power electronics. The levers make field wiring easy. Tool-free device connection is especially advantageous in confined or difficult-to-access installation locations. The clearly visible lever position provides extra security: If the lever is up, the clamping point is open; if the lever is down, the clamping point is closed.
The Benefits for You:
Discover Our PCB Terminal Blocks and PCB Connectors with Levers
PCB terminal blocks with Push-in CAGE CLAMP® and levers (2604, 2606 and 2616 Series) can be intuitively operated without tools via the levers. These terminal blocks, with their compact size, high current carrying capacity and their integrated connection technology, provide for faster and easier wiring. Lever operation provides a secure connection when the easy-to-use lever closes the clamping unit. The lever also clearly locks into position (open/closed) with a tactile and audible click. Conductors can be connected both horizontally and vertically to the PCB and testing can be performed parallel or perpendicular to conductor entry.
Handy PCB Connection with Pluggable Connection System
The pluggable connector family with levers for all performance classes: MCS MINI, MCS MAXI 6 and MCS MAXI 16 cover a cross-section range from 0.14 to 25 mm², providing a suitable pluggable PCB connector for every use – whether compact applications or higher power demands. The intuitive lever allows conductors to be wired directly in-hand.
The Benefits for You:
Convenient Device Connection with the 2601 Series
With the 2601 Series PCB Terminal Block, even small cross-sections can be wired in the field without tools thanks to lever technology. This module is ideal for cross-sections from 0.14 to 1.5 mm². Thanks to CAGE CLAMP ® , solid conductors and fine-stranded conductors with ferrules can be connected by simply pushing them into the unit. The lever also works for all other conductor types, offering quick and easy wiring.

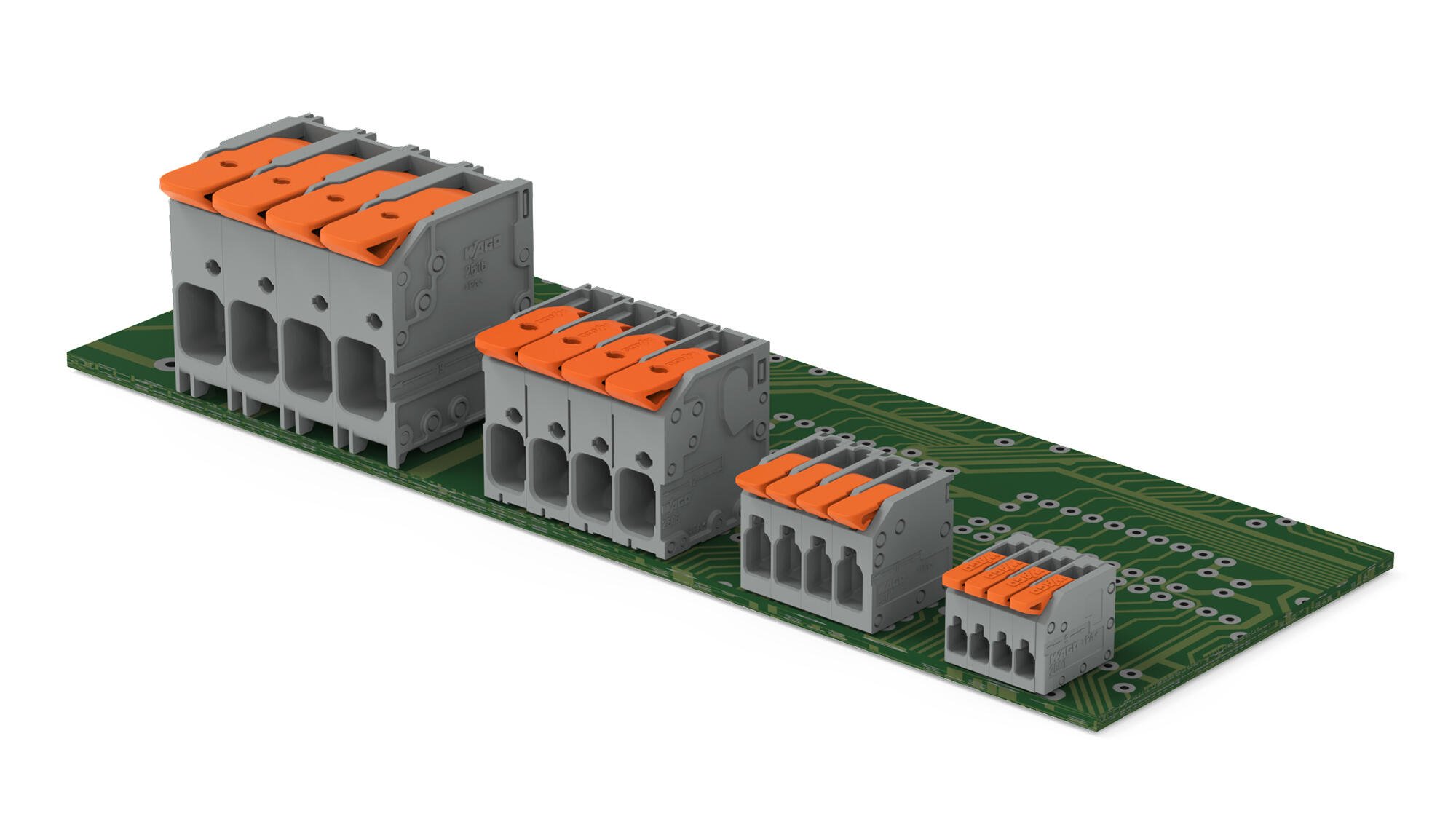

186297 l new website page 1,5 mm² PCB Terminal Block with lever_2000x1125_.jpg" width="" />
Field Connection with Levers for 2.5 mm² Too
The MCS MINI’s levers makes it easy to wire small cross-sections from 0.14 to 1.5 mm² without tools. The low-profile 10 mm design is ideal for confined installation spaces and slim devices. The versatile locking system prevents unintentional disconnection, and the Push-in CAGE CLAMP ® allows direct pluggable connection of solid conductors and fine-stranded conductors with ferrules.
